STANDARD SOLID CARBIDE DRILLS

Solid Carbide Drills made by Volz Drilling Tools GmbH are characterised by high precision, excellent stability and durability as well as outstanding heat resistance, whereby high cutting speed, high feed rates and endurance are achieved. They show very good properties for the processing of abrasive raw material, high strength steel, rust- and acid-proof steel, cast iron, steel alloy and aluminium.

Our standard program covers NC-center drills and short step drills according to our factory standard. The standard articles within our solid carbide program are generally available on short notice. Different dimensions are part of special tools and available upon request.

NC-SPOTTING DRILLS

with cylindrical shank, point angle 90° and 120°, right hand cutting

SURFACE:

blank or TiAlN-coated

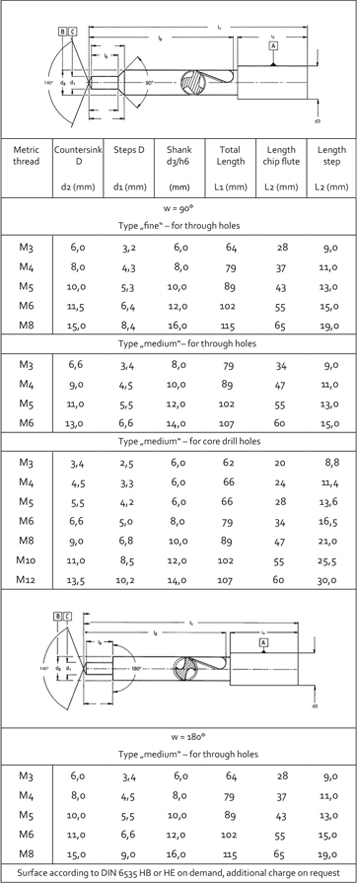

SHORT STEP DRILL WITH TWO EDGES

Shank optional with cylindrical shank or according to DIN 6535 HA point angle 140°, right hand cutting, w= 90° or w=180°

SURFACE:

blank or TiAlN-coated

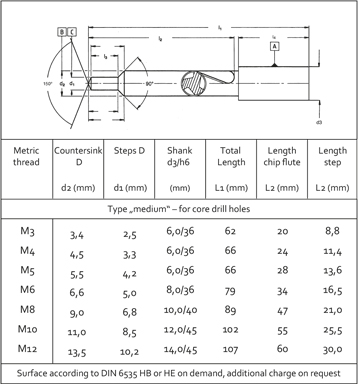

SHORT STEP DRILL WITH THREE EDGES

Shank according to DIN 6535 HA point angle 150°, right hand cutting, step length according to DIN 8378

SURFACE:

blank or TiAlN-coated
